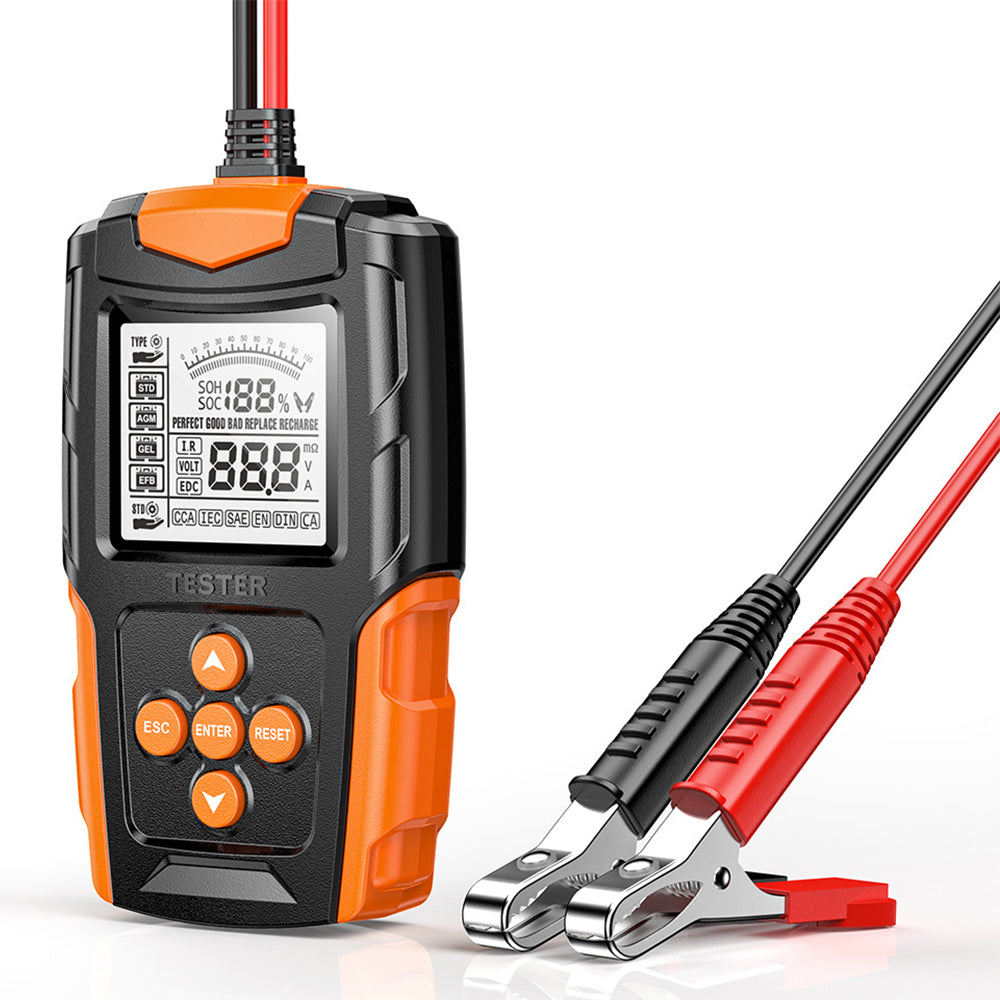

Car Battery Tester 12V 24V Wet Battery Analyzer Charging Diagnostic Test

Type: Car Battery Tester, Wet Battery Analyzer, Charging Diagnostic Test, Digital Automotive Batteries Diagnostic Tool, Charging Analysis for Car

Description:
With this battery tester, you can check the condition of the battery and judge whether it is in good condition or needs to be replaced to avoid accidents caused by battery failure.

Features:

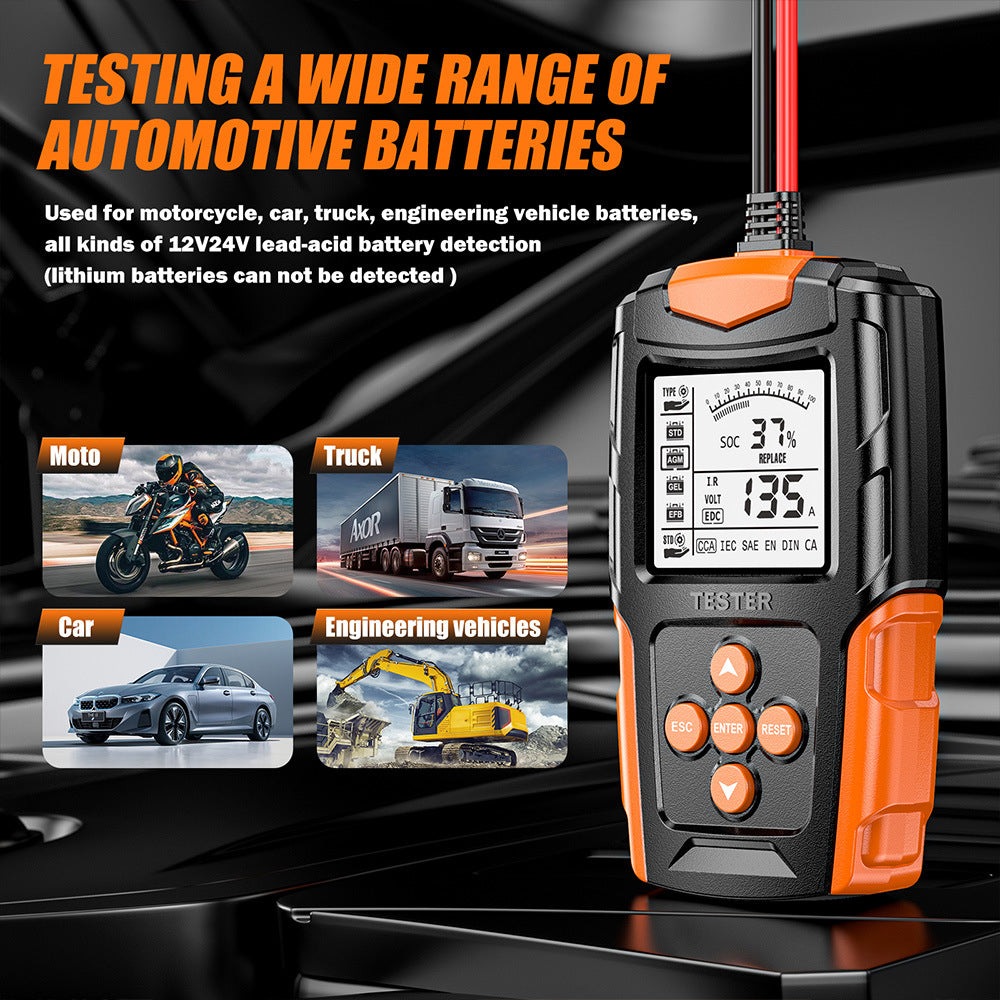

The battery tester can detect all automotive 12v and 24v (test range: 3Ah - 200Ah) lead acid batteries, such as regular flooded, AGM flat plate, AGM spiral, GEL and deep cycle batteries. (Note:You cannot test lithium batteries.)

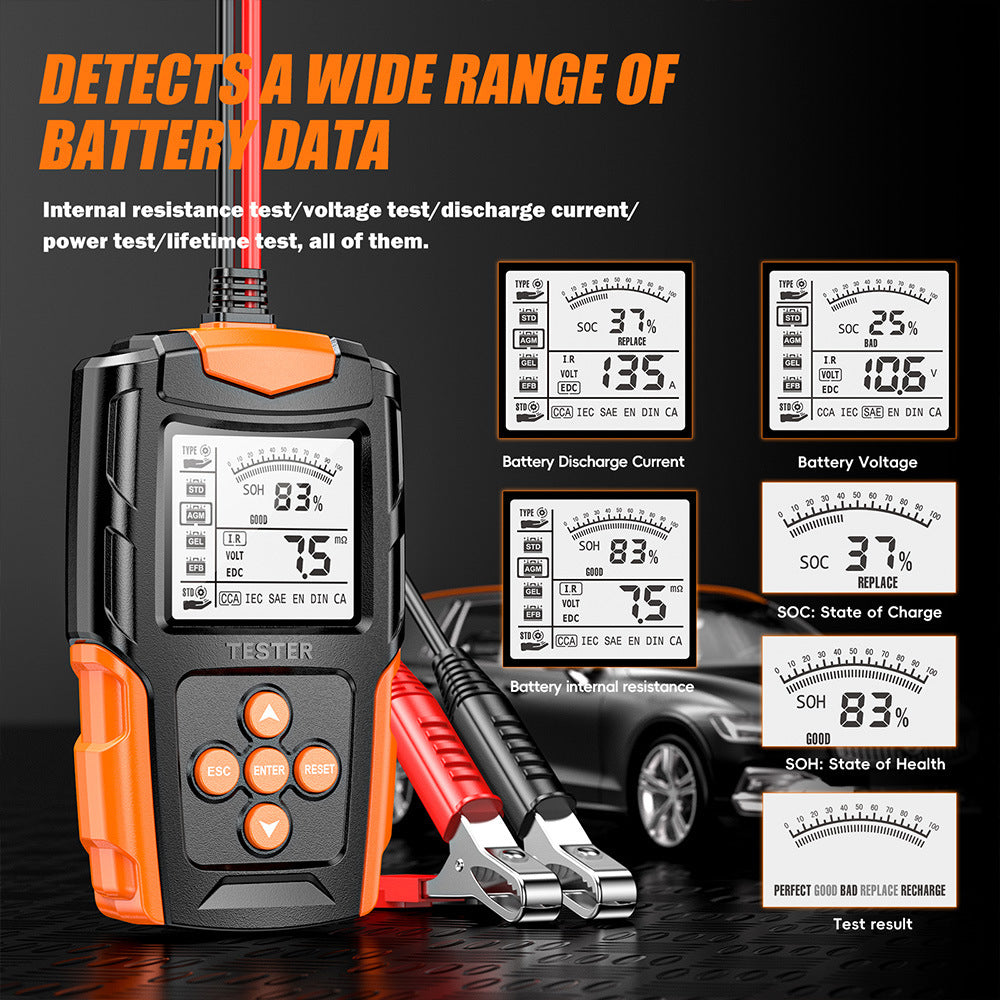

Select the test program according to the battery type, standard, CCA, the battery tester will start working and quickly show you the battery CCA value, health, state of charge, voltage, internal resistance and so on.
With reverse connection protection function, even if the positive and negative poles are connected incorrectly, the battery and equipment will not be damaged.

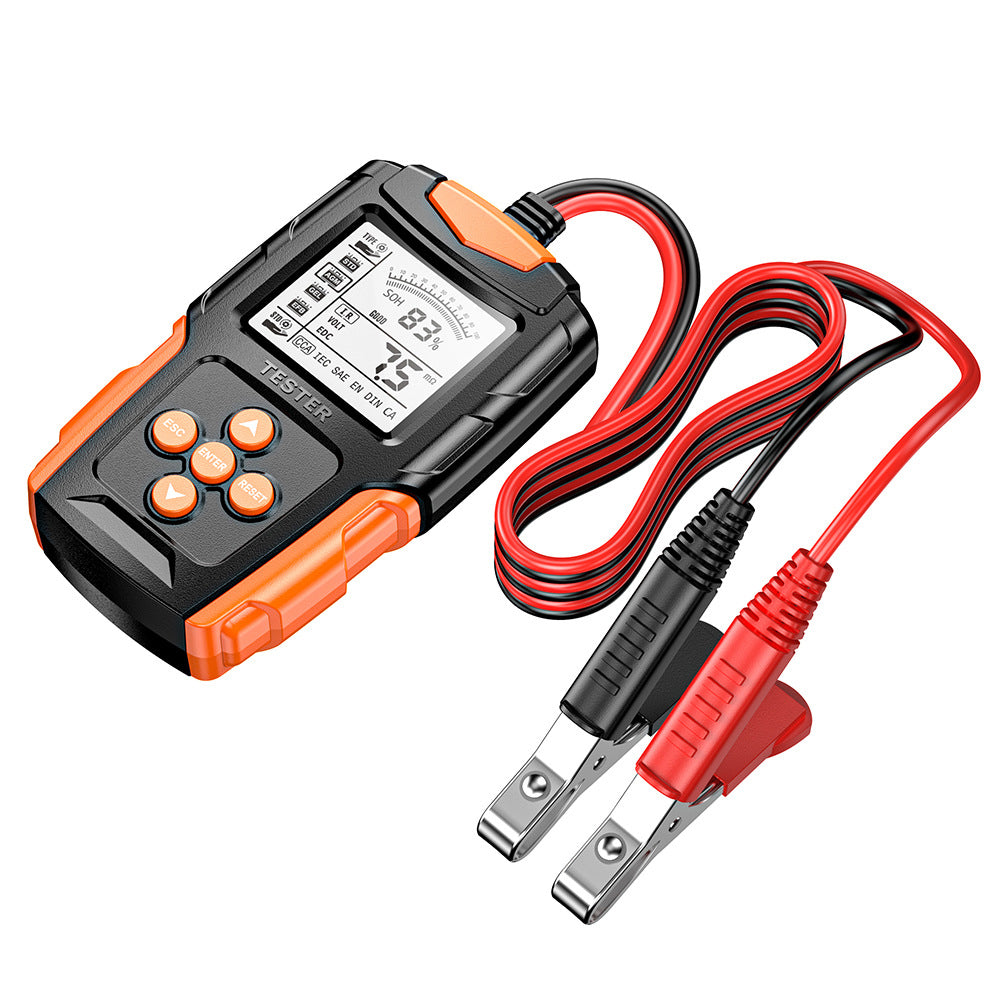

The smart battery analyzer is connected to the battery interface through alligator clips, which is convenient for installation and testing.

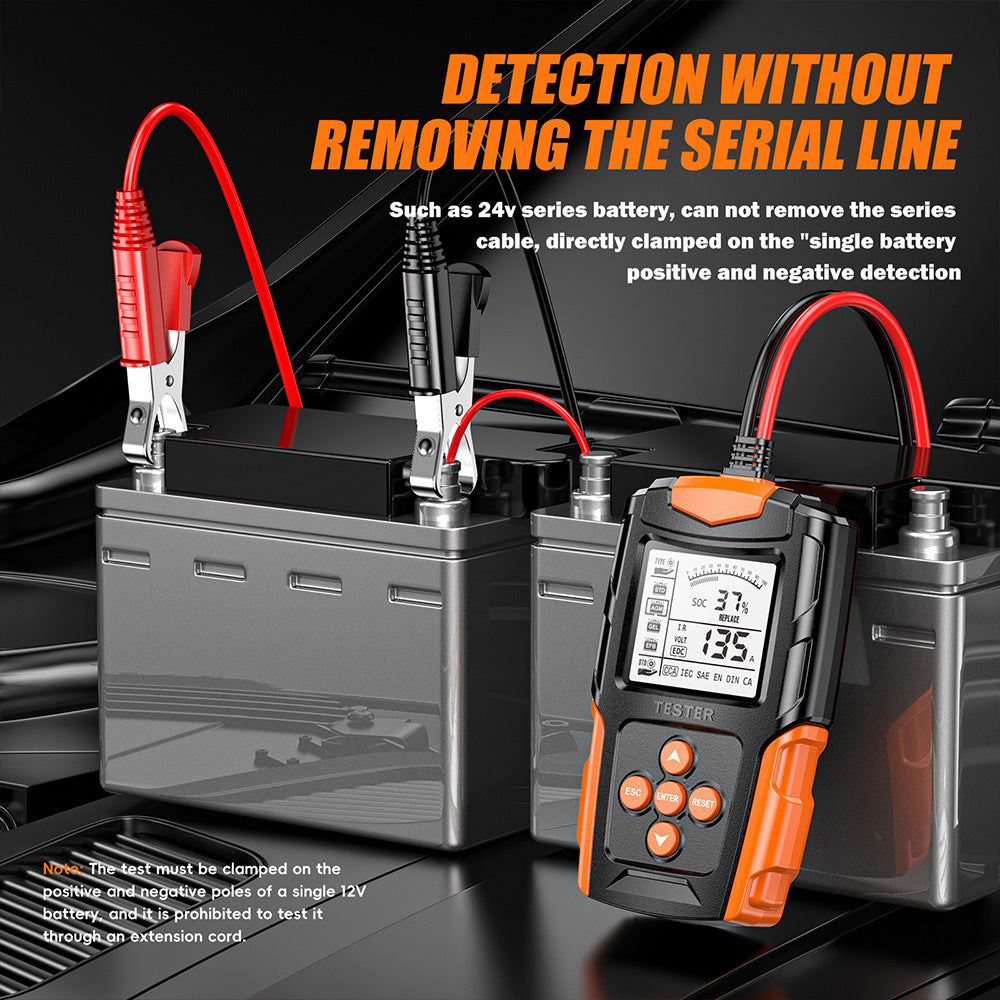

Note: The test must be clamped on the positive and negative poles of a single battery, and it is prohibited to test it through an extension cord.

Specifications:
Shell Material: ABS
Color: Orange
Power Supply Method: Car Charger Power Supply (Power Adaptor Not Included)
Test Results: SOH, SOC, CCA value, IR, etc.
Test Standard: SAE, DIN, IEC, EN, CA, JIS
Voltage Measurement Range: 8-30VDC
Display: 2.7 Inch LCD
Cable Reach: Approx. 65 cm
Size(LxWxH): Approx. 15 x 9 x 3.5 cm

Package Contents:
1 x Car Battery Tester
1 x Charging Cable
